Here is a small progress update.

After roughing out the pieces for the body blanks, I jointed the glue edges.

Clamped them up.

Out of the clamps after drying overnight.

Roughly flattened with a plane, then through the drum sander.

Ready for further processing.

More soon.

[cmatthes]

Regarding the binding:

1. The Winfield Stuff - that's the legit "Rickenbacker" checkerboard, from the same source.  Winfield has been sold out of their supply for close to 3 years, and has no way of getting more at this time...but they leave the ad up regardless.  I got enough to bind a Tele top a few years back and still haven't done it.

2. The Rothko & Frost stuff - It's super cheap for the "wonky" stuff, and I think I got 7-8 lengths of it for under $25.  About 1/4 to 1/3...and in one case, 1/2 of the loop was stretched or distorted, but the rest was fine.  It would just mean getting more pieces and making more joins, but with a checkerboard, that wouldn't be too obvious.  Use that as the inner checkerboard, and bind with white or black ABS.

3. Steve Dikkers - The man is a legend, and does fantastic work.  I had him do a Tele for me a dozen or so years ago, and the binding came out great.  He's vastly improved his finishing methods over the last decade plus.  The finish on mine is really nice - a Midnight Green metalflake, and I had him do two things he hadn't offered before: white/check/white binding and a fistful of holoflake in the sparkle mix.   I'm not sure where he sources his checkerboard material, but it's not the same as the Rickenbacker/Winfield stuff, and is more similar to the R&F product.

4. Bryan England's Custom Inlay - I'm not sure how good this stuff is...or isn't.   Most of my dealings with Custom Inlay have been stellar, but this binding, in addition to being the most expensive by far, is a bit of a stretch at the price.

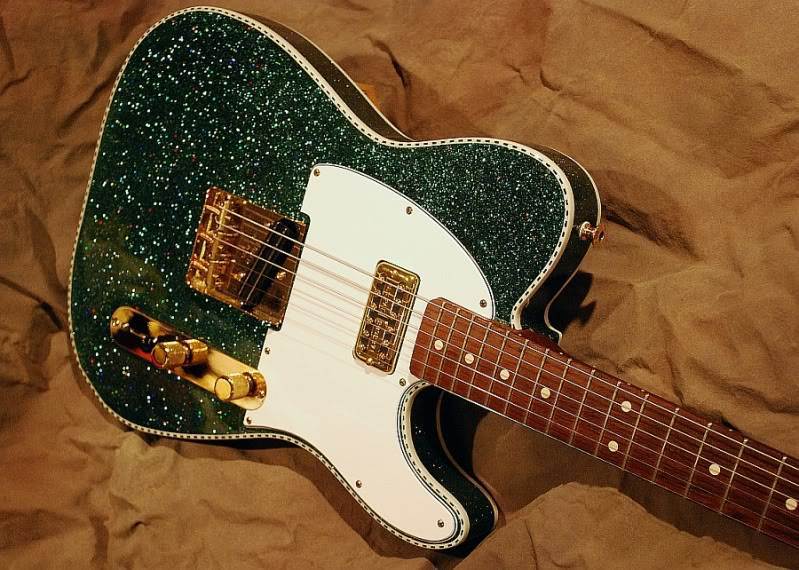

My Dikkers "Envycaster":

[slingblader]

21 hours ago, cmatthes said:

Regarding the binding:

1. The Winfield Stuff - that's the legit "Rickenbacker" checkerboard, from the same source.  Winfield has been sold out of their supply for close to 3 years, and has no way of getting more at this time...but they leave the ad up regardless.  I got enough to bind a Tele top a few years back and still haven't done it.

2. The Rothko & Frost stuff - It's super cheap for the "wonky" stuff, and I think I got 7-8 lengths of it for under $25.  About 1/4 to 1/3...and in one case, 1/2 of the loop was stretched or distorted, but the rest was fine.  It would just mean getting more pieces and making more joins, but with a checkerboard, that wouldn't be too obvious.  Use that as the inner checkerboard, and bind with white or black ABS.

3. Steve Dikkers - The man is a legend, and does fantastic work.  I had him do a Tele for me a dozen or so years ago, and the binding came out great.  He's vastly improved his finishing methods over the last decade plus.  The finish on mine is really nice - a Midnight Green metalflake, and I had him do two things he hadn't offered before: white/check/white binding and a fistful of holoflake in the sparkle mix.   I'm not sure where he sources his checkerboard material, but it's not the same as the Rickenbacker/Winfield stuff, and is more similar to the R&F product.

4. Bryan England's Custom Inlay - I'm not sure how good this stuff is...or isn't.   Most of my dealings with Custom Inlay have been stellar, but this binding, in addition to being the most expensive by far, is a bit of a stretch at the price.





My Dikkers "Envycaster":

Man, I dig that guitar!!

I totally agree with your points. I discovered the same thing when I was researching these builds. I ended up buying 10 pieces of the wonky binding from R&F about 6 weeks ago, but apparently the price has gone up since you bought it.  It's now over $8 a piece... yikes. I do also have thin black binding to sammich it on both sides as well.

Like you mentioned, I'm hoping to cut it up and piece together enough to use for both front and back bindings. Hopefully I bought enough... I haven't gotten up the courage to go see if I actually have enough good material. LOL.

If it doesn't work out, I'll just use black binding for the gold one, it won't be the end of the world.

[slingblader]

I made a little more progress on things.

I got another piece of maple for the neck. (I only had figured maple which was enough for two necks) The third neck will be plain maple, but that's fine, I'll keep that one for myself.

Here are all the wood components, templates, etc. ready for shaping.



I rough cut the body shapes on the band saw. Clearly I should have changed the blade before I started this.



I sanded the body shape as close to the line as I could, then I attached my body template and went to the inverted pin router to cut the cavities. My template is made in layers so that they can pull double-duty. You can see here that I found some inclusions in this alder, some of which will need to be scraped out and filled. Sometimes alder is just like that, but it's OK as these will be solid color anyway.



Cavities have all been routed to depth.



I removed the "cavity" layer from my template and move over to the router table to route the perimeter to shape with a spiral compression bit.



Done.

More soon.

[Travis]

51 minutes ago, slingblader said:

I made a little more progress on things.

I got another piece of maple for the neck. (I only had figured maple which was enough for two necks) The third neck will be plain maple, but that's fine, I'll keep that one for myself.

Here are all the wood components, templates, etc. ready for shaping.



I rough cut the body shapes on the band saw. Clearly I should have changed the blade before I started this.



I sanded the body shape as close to the line as I could, then I attached my body template and went to the inverted pin router to cut the cavities. My template is made in layers so that they can pull double-duty. You can see here that I found some inclusions in this alder, some of which will need to be scraped out and filled. Sometimes alder is just like that, but it's OK as these will be solid color anyway.



Cavities have all been routed to depth.



I removed the "cavity" layer from my template and move over to the router table to route the perimeter to shape with a spiral compression bit.



Done.

More soon.

Those look fantastic. You ever build bodies to sell by themselves?  Or only for the complete guitars you make?

[gorch]

That are going to be some nice Teles. Love it.

[slingblader]

On 8/14/2021 at 1:46 PM, Travis said:

Those look fantastic. You ever build bodies to sell by themselves?  Or only for the complete guitars you make?

So far, I haven't sold a thing. I've given one guitar to a friend and I've kept the rest for myself.

Of course, now I'm making one for my brother and dad, but that's a family thing. LOL

So, PM me;  I'm not sure that discussing monetary transactions on the open forum is acceptable behavior and I don't want to get the boot.

[slingblader]

Next, I decided to get started on the necks. These will be two piece, maple cap necks. I'm using StewMac double action rods with the slotted nut. Yeah, not historically accurate, I know. I just want a nice functional truss rod that doesn't require too much complicated work for me.

The first thing that I did was to make a little jig so that I could drill the hole for the TR nut in the heel of the neck. Then I cut off the neck blank nearly flush at the heel line.

I aligned and clamped the jig in place, then drilled the nut hole to the appropriate depth with a brad point bit.

Nut hole, complete.

The truss rod nut needs some clearance in order for it to slide into position, so I used a 1/2" forstner bit to drill a hole on the top of the heel right on the center line. This hole is as deep as the TR slot/nut hole.

Then I took the blanks to the router table and routed the slot for the truss rod. Good fit.

After cutting out the necks at the band saw, I attached the neck template. I sanded as close to the template as possible.

Then back to the router table to flush trim the necks.

And the pile of parts is getting more shapely.


Thanks for following along, more soon.

Edited August 16, 2021 by slingblader
